Steel shot is one of the most widely used metallic abrasives in industrial surface treatment. Its unique spherical shape, high durability, and repeatable performance make it indispensable in blasting, cleaning, and shot peening processes. However, many people still confuse its definition, properties, and applications with other abrasives such as steel grit or garnet.

Steel shot is a spherical metallic abrasive, typically made from high-carbon steel, low-carbon steel, or stainless steel (430 and 304 grades), used for surface cleaning, preparation, and strengthening in industries such as shipbuilding, automotive, aerospace, and foundry work.

If you only remember “small round steel balls used in blasting,” you’ll miss the crucial details that determine performance, cost, and surface quality. In this article, we’ll go beyond the basics and explore steel shot’s composition, manufacturing standards, key properties, and its role in modern industry.

By the end of this guide, you’ll not only know what steel shot is but also understand the technical details that make it the right choice for many surface preparation tasks.

Definition of Steel Shot?

Steel shot refers to spherical metallic particles produced by atomizing molten steel and subsequently heat-treating them to achieve specific hardness and durability. The manufacturing process ensures high roundness and uniform size distribution, which are critical for consistent impact energy during blasting or peening.

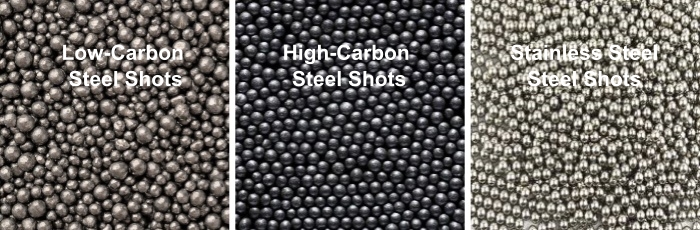

Steel shot can be categorized into three main types:

1. High-Carbon Steel Shot – Common in blasting and peening, offering high hardness and durability.
2. Low-Carbon Steel Shot – Lower hardness, more ductile, producing less dust and less substrate damage.
3. Stainless Steel Shot – Resistant to corrosion, used on non-ferrous metals, food-processing equipment, and medical tools. The most common grades are 430 stainless steel shot (ferritic, cost-effective) and 304 stainless steel shot (austenitic, excellent corrosion resistance).

Chemical Composition and Material Standards?

High-carbon steel shot:

• C: 0.80–1.20%
• Mn: 0.60–1.20%
• Si: 0.40–1.20%
• Low S and P (<0.05%)

Low-carbon steel shot:

• C: 0.12–0.18%
• Mn: 0.35–1.20%
• Si: 0.15–1.20%
• Low S and P (<0.05%)

Stainless steel shot:

• 430 (Ferritic) – Cr: 16–18%, very low C (<0.12%), magnetic, good wear resistance, moderate corrosion resistance.
• 304 (Austenitic) – Cr: 18–20%, Ni: 8–10%, very low C (<0.08%), non-magnetic, excellent corrosion resistance.

Relevant Standards:

• SAE J444 – Size classification for steel shot and grit
• ISO 11124-2 – High-carbon cast steel shot specifications
• ISO 11124-3 – Low-carbon cast steel shot specifications
• JIS R6001 – Japanese abrasive standards

Precise control of chemical composition ensures consistent hardness, durability, and compatibility with specific applications and substrates.

Physical Properties of Steel Shot?

Key Properties:

Property	Typical Range / Options	Impact on Performance
Hardness	40–51 HRC (General), 55–65 HRC (High-hardness)	Lower hardness for peening, higher for cleaning
Density	≥ 7.4 g/cm³	Higher density improves impact energy
Roundness	≥ 85% (ISO 11125)	Increases finish uniformity
Life Cycle	800–2,000 cycles	Lower cost per job

These physical properties directly influence productivity, surface quality, and abrasive cost per job.

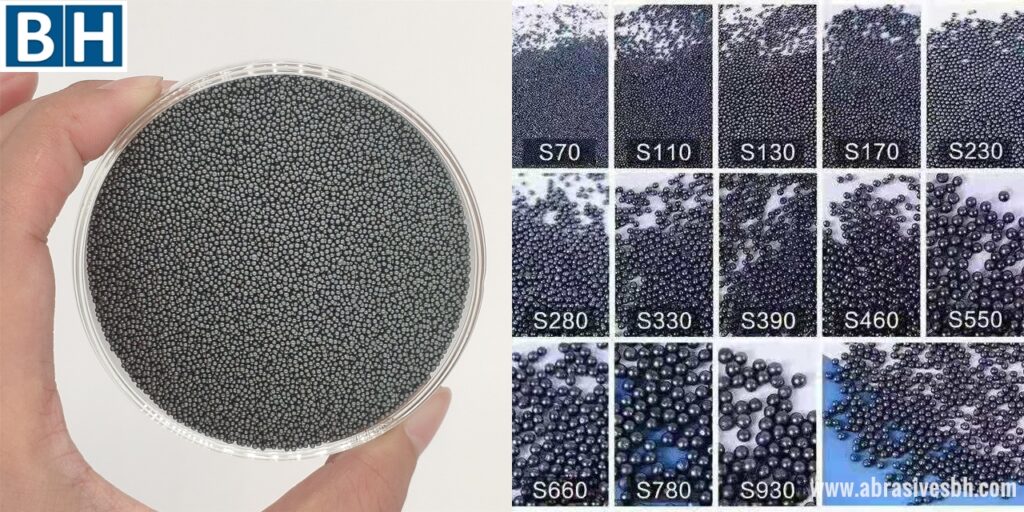

Steel Shot Size Classifications?

Steel shot is classified primarily by diameter, measured in millimeters or inches, and standardized under SAE J444, ISO 11124, and JIS R6001. Each size directly influences the surface profile, cleaning speed, and abrasive consumption.

Steel shot sizes range from ultra-fine S70 (0.18 mm) for precision cleaning to heavy-duty S780 (2.00 mm) for rapid scale removal. Choosing the right size balances surface roughness, cleaning efficiency, and abrasive lifespan.

SAE Size	Nominal Diameter (mm)	Typical Application	Surface Profile (Ra, µm)
S70	0.18	Thin sheet metal cleaning, delicate surfaces	20–30
S110	0.28	Light rust removal, aluminum cast cleaning	25–40
S230	0.60	General-purpose blasting, coating prep	40–60
S390	1.00	Heavy rust/scale removal, structural steel	60–90
S550	1.40	Bridge beams, thick plate cleaning	80–120
S780	2.00	Ship hull cleaning, large forgings	100–150

Selection Factors:

1. Substrate Thickness – Thin materials require smaller shot to prevent warping.
2. Surface Profile Requirement – Coating manufacturers specify Ra values for optimal adhesion.
3. Cleaning Speed – Larger shot removes material faster but may create too rough a profile.
4. Equipment Capability – Wheel blast machines have size limitations for optimal performance.

Industry Example:

• Offshore oil platform beams often use S550 or S780 to achieve a coarse profile for heavy-duty epoxy coatings.
• Automotive wheel rims use S110 or S170 for a smooth finish before powder coating.

Correct shot size selection is a balance between required finish quality, blasting efficiency, and the mechanical limits of your equipment.

Applications of Steel Shot?

Steel shot’s versatility makes it suitable for cleaning, preparation, and strengthening in a variety of industrial sectors. Its recyclability (up to 1,000–2,000 cycles) provides both economic and environmental benefits.

From rust removal in shipyards to fatigue life extension in aerospace parts, steel shot is a critical abrasive for industries that demand consistent results and cost efficiency.

1. Surface Cleaning

Removes rust, paint, scale, and other contaminants from metal surfaces.

• Industries: Shipbuilding, bridge maintenance, heavy equipment refurbishing
• Benefit: Prepares surfaces to ISO 8501-1 Sa 2.5 or Sa 3 cleanliness levels.

2. Shot Peening

Applies controlled compressive stress to improve fatigue resistance.

• Industries: Aerospace (turbine blades), automotive (suspension springs, gears)
• Benefit: Extends component life by up to 300%, reduces risk of stress cracks.

3. Surface Preparation

Creates an anchor profile to improve coating adhesion.

• Industries: Oil & gas pipelines, wind towers, offshore platforms
• Benefit: Ensures coating systems perform at maximum durability.

4. Deburring and Polishing

Removes sharp edges, burrs, or casting flash.

• Industries: Foundries, die-casting, medical device manufacturing
• Benefit: Improves safety, aesthetics, and downstream processing performance.

5. Decorative Finishing

Achieves uniform matte finishes on stainless steel and aluminum surfaces.

• Industries: Architectural metalwork, consumer appliances
• Benefit: Enhances appearance without significant material removal.

Industry Example:

• Shipyard – Large wheel-blast chambers with S390 shot to clean hull plates before primer.
• Aerospace – Controlled shot peening with S110 stainless steel shot for turbine blade fatigue resistance.
• Foundry – S230 high-carbon shot to clean sand and scale from cast iron engine blocks.

Whether the goal is cleaning, strengthening, or finishing, steel shot’s adaptability makes it the abrasive of choice for industries where performance, consistency, and lifecycle cost matter.

Steel shot is far more than “small steel balls.” It is a precision-engineered abrasive, designed and manufactured to strict standards, offering consistent performance in demanding industrial environments. Understanding its definition, composition, properties, and applications empowers users to make informed choices.

Conclusion

Steel shot is more than just a blasting material — it is a precisely engineered tool that delivers consistent, repeatable results in cleaning, surface preparation, and material strengthening.

In this guide, we have covered:

• Definition – Steel shot as spherical metallic abrasives, available in high-carbon, low-carbon, and stainless steel grades (430 and 304).
• Composition & Standards – How chemical makeup and compliance with SAE, ISO, and JIS standards ensure predictable performance.
• Physical Properties – Hardness, density, roundness, and lifecycle as the key determinants of efficiency.
• Size Classifications – From S70 to S780, how size selection affects profile, speed, and substrate safety.
• Applications – From ship hull cleaning to aerospace shot peening, the versatility across industries.

Choosing the correct steel shot means balancing surface quality, production efficiency, and total operational cost. A wrong choice can result in wasted abrasive, poor coating adhesion, or premature component failure.

For industries where precision and reliability are non-negotiable, steel shot remains the abrasive of choice. By understanding its types, specifications, and applications, you can ensure optimal performance, extend equipment life, and achieve superior surface quality.
